The World's Best
Water Security System


FLO n STOP Wireless Water Shutoff System

        US Patents 5881755 and 8201572  -  Certified to NSF61 Annex G  -  Meets State and Municipal Plumbing Codes


Product Line

The FLO n STOP Wireless Water Shut-off Systems

            Ü  See how it protects Û                Ü  Product Data Sheet Û

    Ø

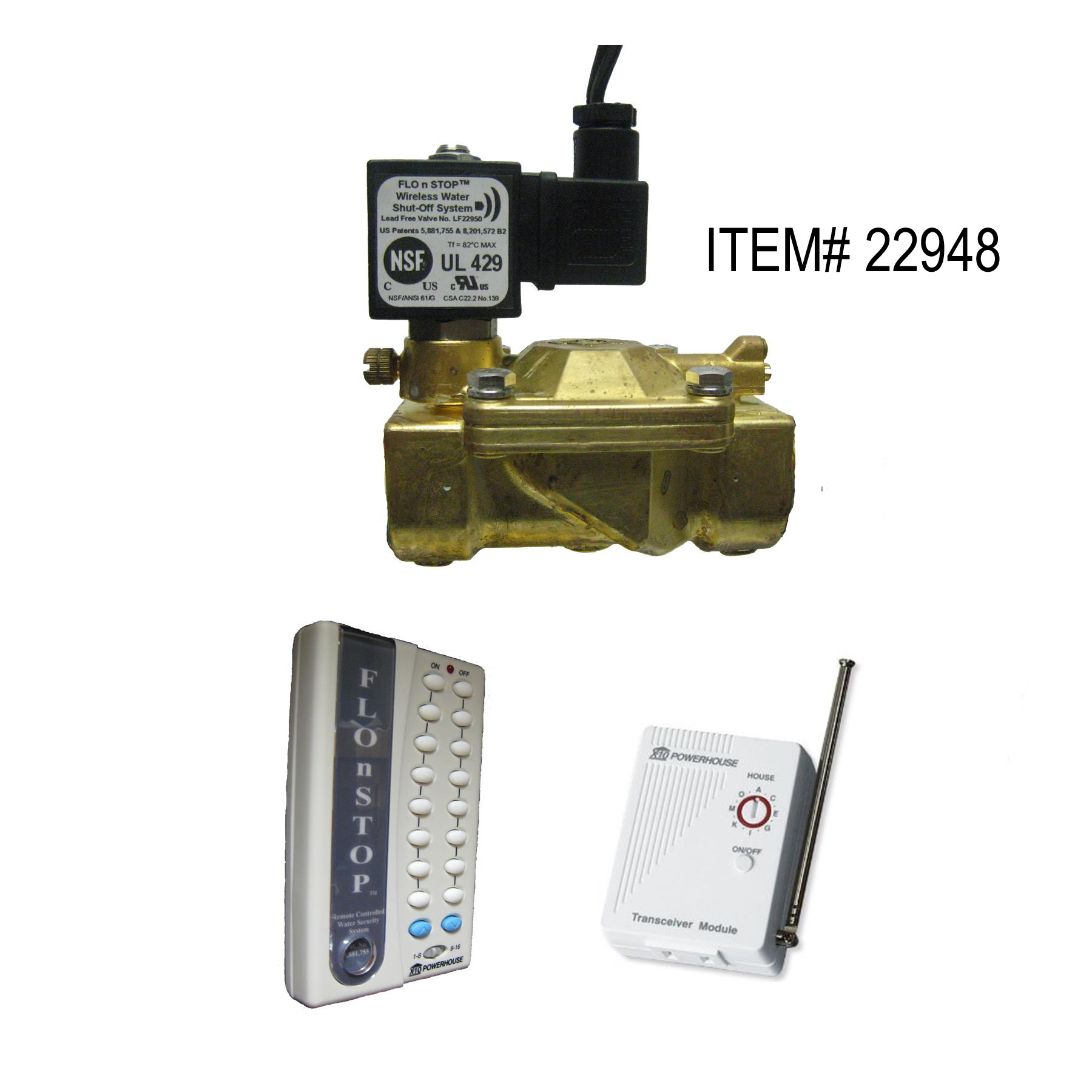

1" Certified Lead Free Brass Valve - Up to 16 indiv. coded settings  (110-120VAC)

             Each system meets U.S. and Canadian Plumbing Code Standards.

VALVE SPECIFICATIONS
   Assembled Depth (in.) - 3 in
   Assembled Height (in.) - 4 in
   Assembled Width (in.) - 4 in
   Color/Finish Family - Brass
   Inlet  -  FIP
   Outlet  - FIP
   Material - Lead Free Brass Brass
   Maximum Pressure - 232 psi
   Plumbing Part Type - Supply Line Valve
   MFG Model# : 22948 (110-120VAC)

______________________________________________________________________________


    Ø

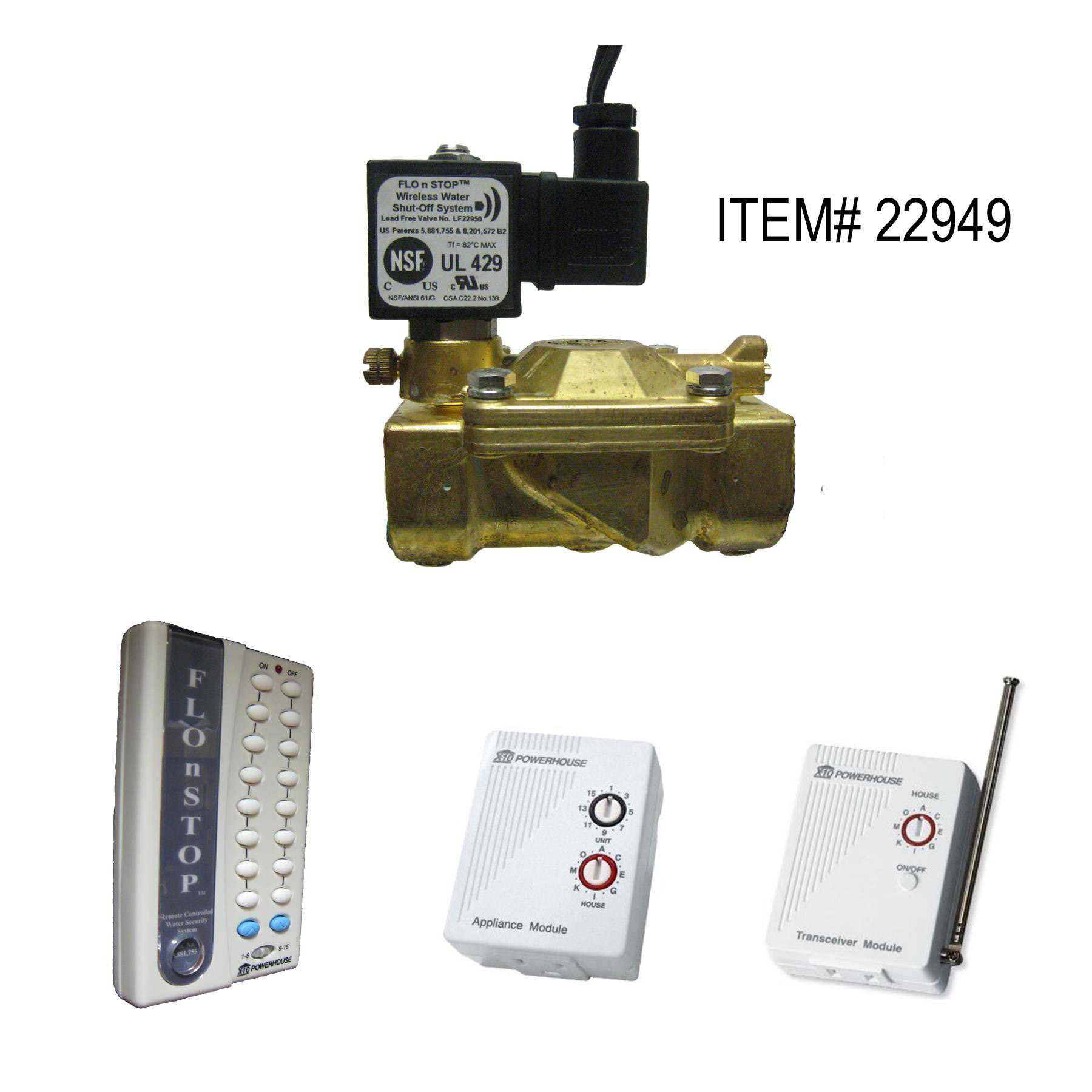

1" Certified Lead Free Brass Valve - Up to 256 indiv. coded settings    (110-120VAC)
             Each system meets U.S. and Canadian Plumbing Code Standards.

VALVE SPECIFICATIONS
   Assembled Depth (in.) - 3 in
   Assembled Height (in.) - 4 in
   Assembled Width (in.) - 4 in
   Color/Finish Family - Brass
   Inlet  -  FIP
   Outlet  - FIP
   Material - Lead Free Brass Brass
   Maximum Pressure - 232 psi
   Plumbing Part Type - Supply Line Valve
   MFG Model# : 22949 (110-120VAC)

______________________________________________________________________________


    Ø

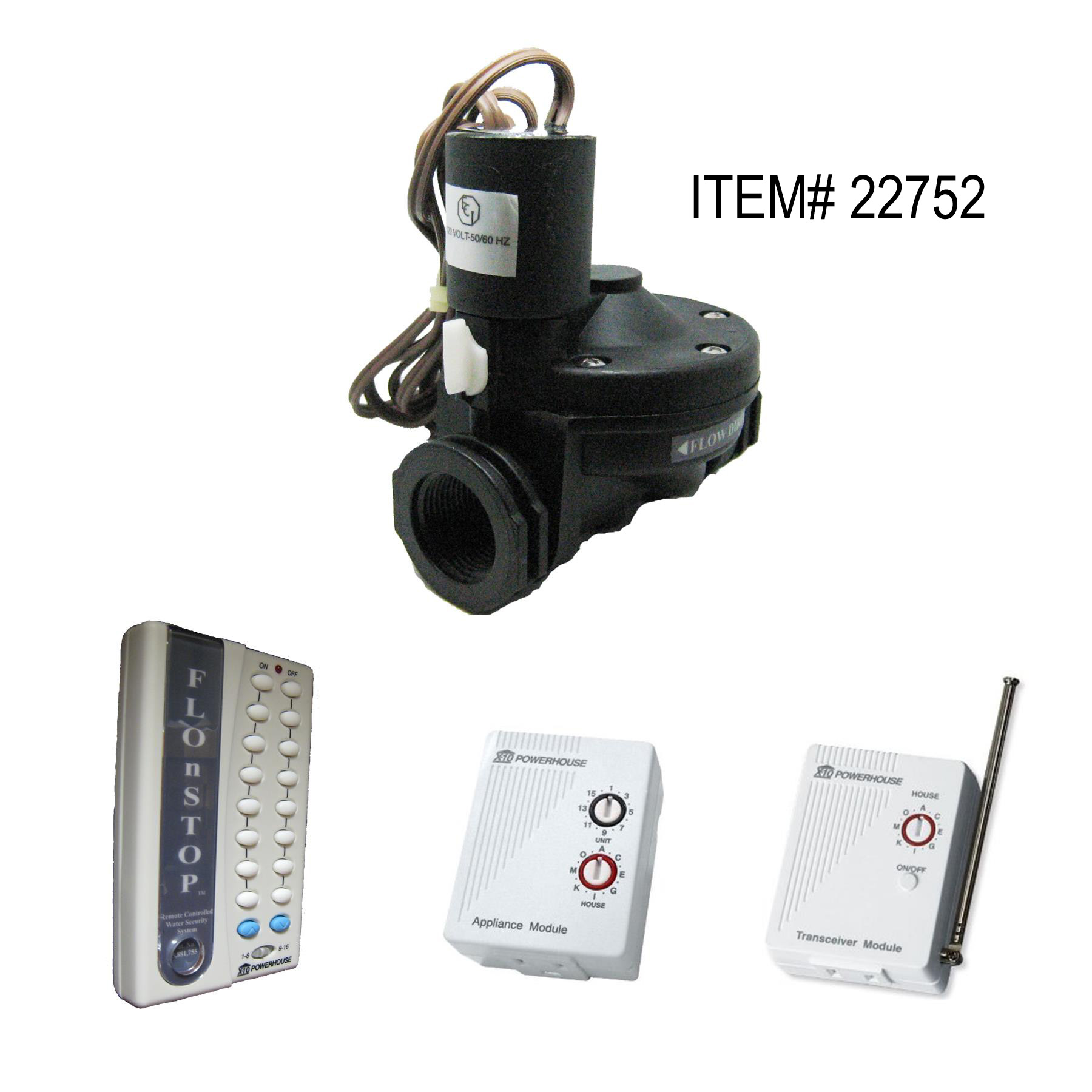

1" Nylon Valve - Up to 256 individual coded settings    (110-120VAC)

VALVE SPECIFICATIONS
   Assembled Depth (in.) - 3. in
   Assembled Height (in.) - 4.5 in
   Assembled Width (in.) - 4.5 in
   Color/Finish Family - Nylon
   Inlet  -  FIP
   Outlet  - FIP
   Material - Nylon
   Maximum Pressure - 232 psi
   Plumbing Part Type - Supply Line Valve
   MFG Model# : 22752 (110-120VAC)

______________________________________________________________________________
Available Accessories for the Flo n Stop Water System

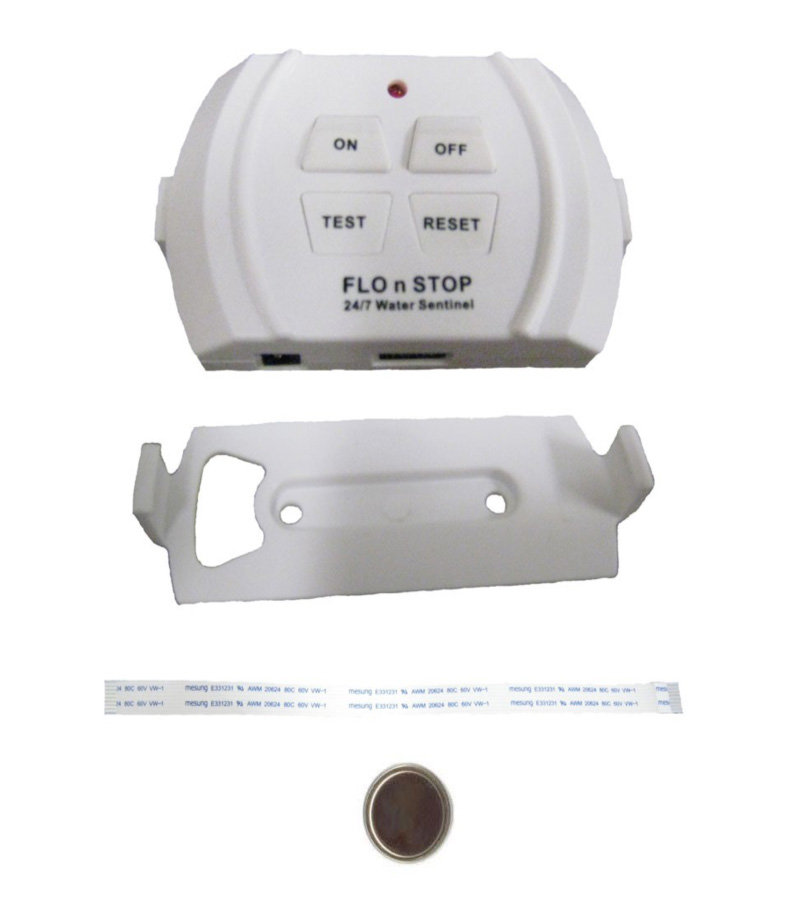

24/7 Water Sentinel Floor Sensor
            Leak Detector with Audible Alarm Signal  (Item #22703)

SPECIFICATIONS
   Height (in.) - 2 in
   Width (in.) - 3.5 in
   Depth (in) - 5 in.
   Battery Type - lithium ION (included)
   Power Type - Low Voltage
   Commercial/Residential - Both
   Detects/Tests - Senses water on floor then transmits a
                   wireless coded signal to the FLO-n-STOP Shut-Off
                   Valve
   MFG Model# : 22703 (single)

______________________________________________________________________________

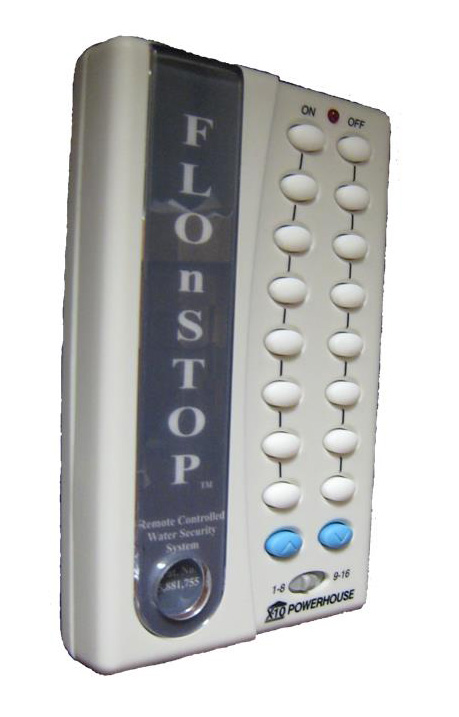

Button Pad Transmitter
            Placed by most used Exit/Entrance    Item #22952

SPECIFICATIONS
   Height (in.) - 4.5 in
   Width (in.) - 3 in
   Depth (in) - .75 in.
   Color Family - Blue/White
   Commercial/Residential - Both
   Battery Type - four (4) AAA batteries  (not included)
   MFG Model# : 22952





______________________________________________________________________________
